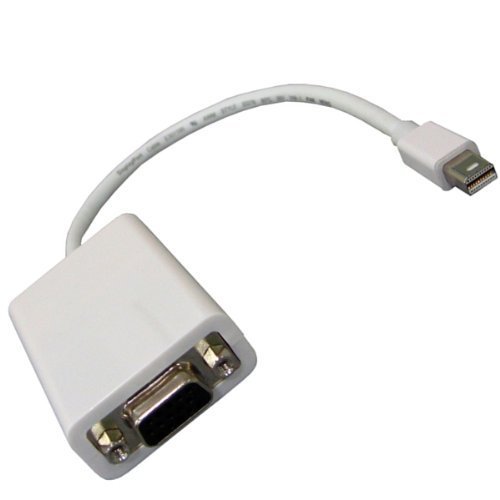

1.Description : The mini DisplayPort to VGA Adapter lets you connect a high definition monitor, projector, or LCD that uses a VGA connector or cable to a MacBook, MacBook Pro, or MacBook Air with a mini DisplayPort
2.Features:
1) .Connect any standard analog monitor, projector, or LCD that uses a VGA connector with the Mini DisplayPort to VGA Adapter
2).Mini DisplayPort 1.1a compliant receiver offering 5.4 Gbps bandwith over 2 lanes
3).Integrated triple 10-bit, 162 MHz video DAC for analog VGA signal output
4). Supports up to 1080p, 1920 x 1200 reducted blanking video resolution
5). EDID pass-through from PC source to display
6). Spread Spectrum (de-spreading) for EMI reduction
7). Automatic sink detection
8). Low power standby mode operation initiated based on sink detection status
9). Powered from Mini DisplayPort source 3.3V IO, 1.2V Core
10). Low power operation - Active 400mW, standby mode 15mW
11). Connectors: Mini DisplayPort Male to VGA Female
3.
Package Includes:
1 x Mini Displayport to VGA adapter for apple MacBook
Operation:
Connect MiniDisplayPort side to MacBook MiniDisplayport interface.
Connect VGA cable from Projector or other display to the VGA Side of the short cable.
Turn on the power of Sink device and then the power of source device in sequence.
